QuWireless QuOmni 5G/LTE Global MIMO 4x4 5m/10m cable
, ,

QuWireless QuOmni 5G/LTE Global MIMO 4×4 5m/10m cable

QuOmni 5G/LTE omnidirectional MIMO 4×4 is ultra wideband LTE Outdoor antenna. Itยดs primary designed for LTE/5G/3G/2G devices which require high efficiency connections. The antenna covers many LTE bands including the new Extended LTE Band 71, frequencies:ย 617 – 6000MHz. The mounting bracket allows the antenna to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by LTE/5G/3G/2G. It’s ideal solution to use with all industrial and domestic 4×4 LTE modems and routers.

Price range: £122.08 through £141.37

Get Trade Price
Add to Quote
Compare

SKU: N/A Categories: , , Brand:
Cable Length

5M, 10M

FREQUENCY

617 – 960 MHz

1.7 – 2.7 GHz

3.3 – 4.7 GHz

5.2 – 6.0 GHz

GAIN

617 – 960 MHz : 3 dBi

1.7 – 2.2 GHz : 4 dBi

3.3 – 4.7 GHz : 4.5 dBi

5.2 – 6.0 GHz : 2.5dBi

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.80, max <2.00

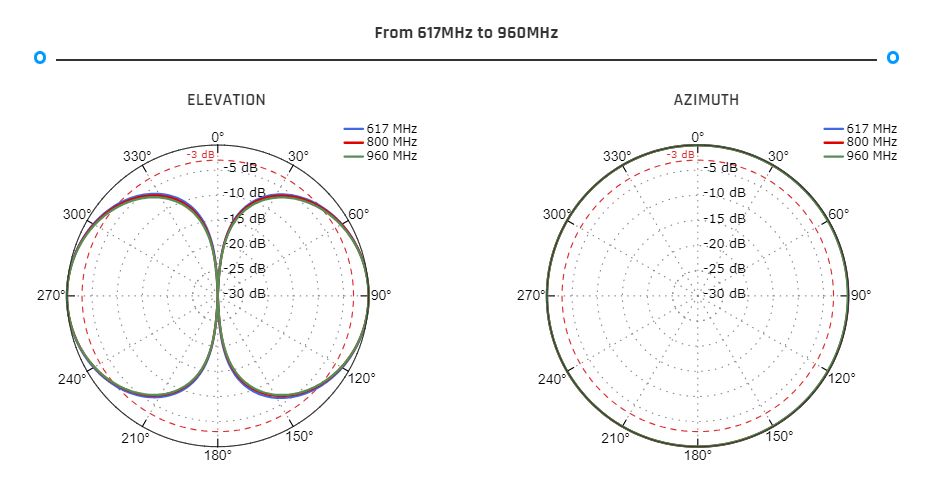

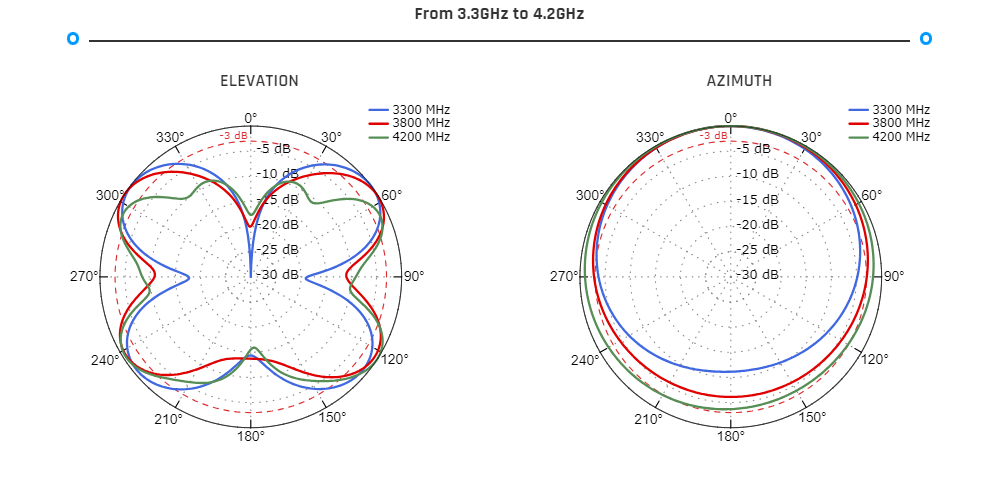

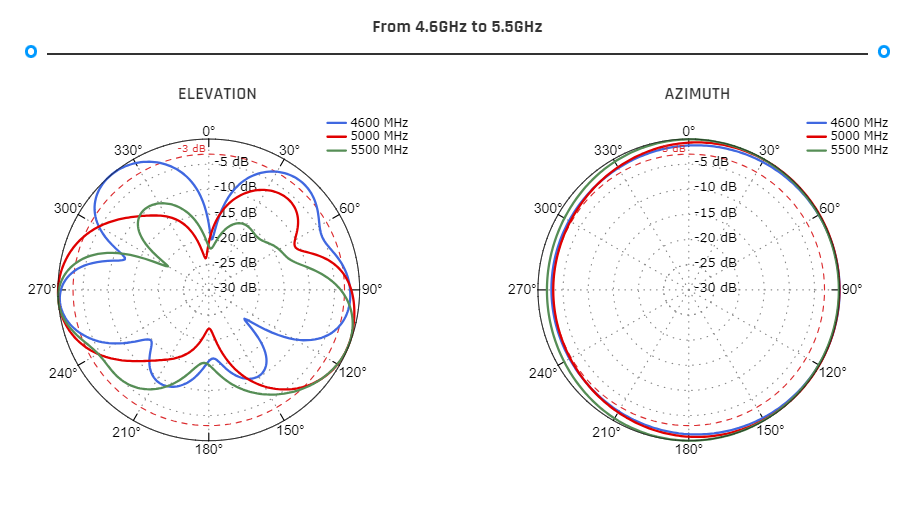

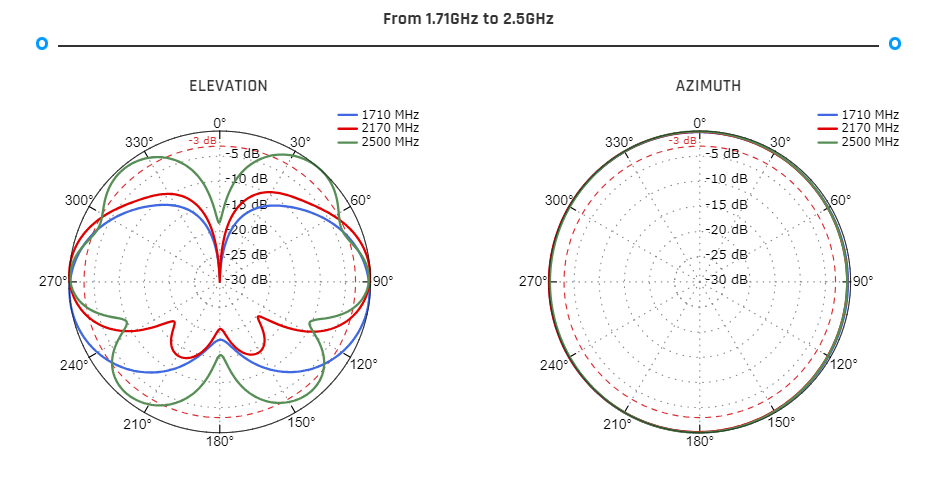

BEAMWIDTH

360°/35° ±5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

MATERIALS

ABS, aluminum, PTFE

CONNECTOR TYPE

SMA

INGRESS PROTECTION

IP67

DIMENSIONS

160 x 160 x 240 mm

6.3 x 6.3 x 9.45 inch

WEIGHT

1.5 kg

3.31 lbs

OPERATING TEMPERATURE

From -40°C to 80°C

From -40°F to 176°F

MAST DIAMETER

40-60 mm

1.57-2.36 inch

LTE / 4G

617 MHz

1

2

3

4

5

7

8

9

10

12

13

14

17

18

19

20

22

25

26

27

28

29

30

33

34

35

36

37

38

39

40

41

42

43

44

47

48

49

52

53

65

66

67

68

69

71

85

103

106

6000 MHz

5G

617 MHz

n1

n2

n3

n5

n7

n8

n12

n13

n14

n18

n20

n25

n26

n28

n29

n30

n34

n38

n39

n40

n41

n47

n48

n53

n65

n66

n67

n71

n77

n78

n80

n81

n82

n83

n84

n85

n86

n89

n90

n95

n97

n98

n100

n101

n256

6000 MHz
