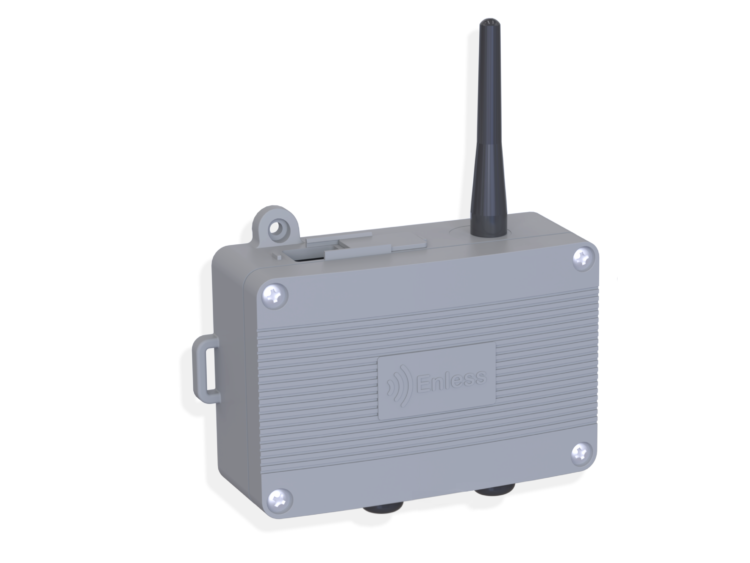

ENLESS EU868 LoRa Modbus master transmitter
Theย Enless Modbus master transmitterย can read / write up to 60 Modbus registers (16 or 32 bit), distributed over a maximum of 10 separate slaves.
Theย Enless TX MODBUSย is only compatible with theย Enless proprietary LoRa mode (not LoRaWAN compatible).
£210.03 (£252.04 incl. VAT)
The Enless Modbus master transmitter can read / write up to 60 Modbus registers (16 or 32 bit), distributed over a maximum of 10 separate slaves.
The Enless TX MODBUS is only compatible with the Enless proprietary LoRa mode (not LoRaWAN compatible).
The Enless Modbus master transmitter and the Enless Modbus receiver communicate by radio, making it possible to:
- Read the Modbus registers and send the data to the Enless receiver
- Write in the Modbus registers at the command of the Enless receiver
This device is particularly well suited to Modbus based remote energy meter reading applications, but it can also be adapted for reading / writing Modbus registers in a number of other applications (air conditioning, rooftop, etc.).
The Enless Modbus master Transmitter power supply is external – 7.5 to 24V.
REF : TX MODBUS 600-041
| Protocol : | EU868 Enless LoRa proprietary (not LoRaWAN compatible) |
| Dimensions : | L 118 x H 79 x D 43 mm |
| Enclosure IP rating : | ABS IP 60 |
| Application : | Reading/Writing on 60 Modbus registers max |
| Number of managed slaves : | 10 maximum |
| Interface : | RS485 |
| Power supply : | From 7.5 to 24 V DC |
| Mounting : | Wall / Collar / DIN rail |
| Status LED’s : | 5 LEDs and 1 external power LED |
| Certifications : | CE & UKCA |
