QuSpot for Teltonika TRB140e
Integrated multi-band LTE omni antennas + place to install Teltonika TRB140 (All-in-one)
£69.00 (£82.80 incl. VAT)
-
4G LTE Gateways, Teltonika
Teltonika TRB140
TRB140 is an ultra-small, lightweight, and energy-efficient IoT device with mission-critical LTE Cat 4 and Gigabit Ethernet connectivity options. Linux environment offers a high degree of customization. This gateway is perfect for projects and applications where a single device must be upgraded with reliable and secure internet connectivity.
SKU: TRB140
Description:

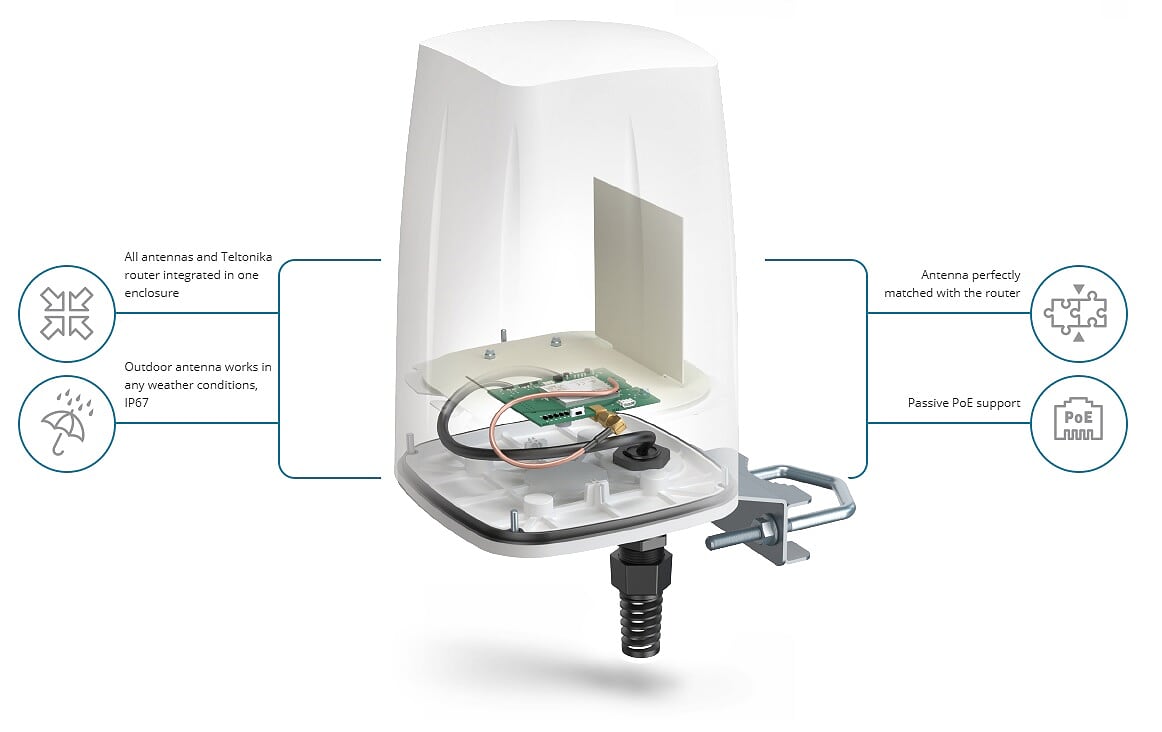

QuSpot omni LTE antenna for Teltonika TRB140 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. If you use TRB140 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Downloads:
Datasheet-QuSpot-for-TRB140-v1.0
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.694 – 0.96 GHz 1.7 – 2.2 GHz 2.2 – 2.7 GHz |
| Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85 |
| Gain | 0.694 – 0.96 GHz : 2 dBi 1.7 – 2.2 GHz : 2 dBi 2.2 – 2.7 GHz : 4 dBi |
| VSWR | <1.60, max <2.00 |
| Beamwidth | 360°/35° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE |
| Ingress protection | IP67 |

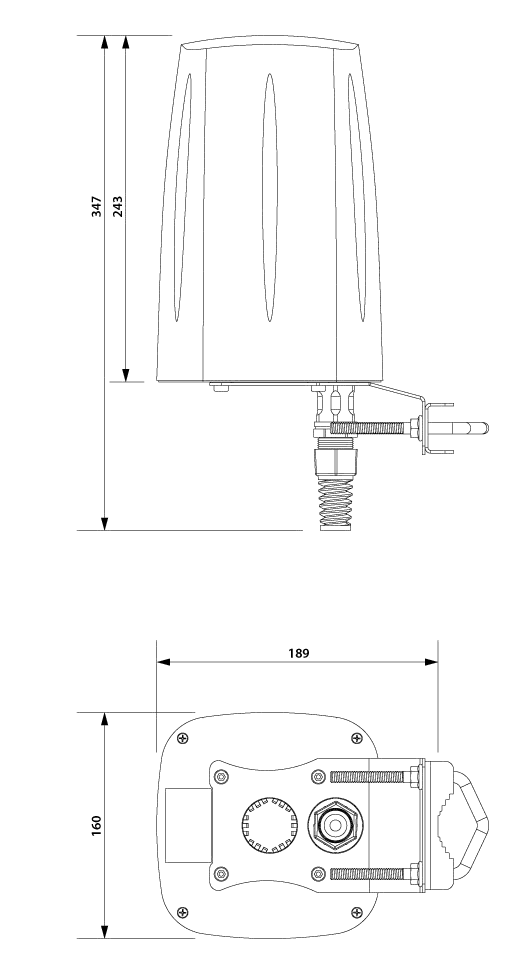

| Dimensions | 160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch |
| Weight | 1.5 kg 3.31 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
| DEVICE SPECIFICATION (NOT INCLUDED) | |
|---|---|
 Small and quick to deploy industrial Ethernet to 4G LTE IoT gateway. Advanced VPN functionality, security and remote management capabilities makes TRB140 the best option for single device connectivity. |
|
