SW-505-industrial-compact-ethernet-5-port-switch-din-rail-mountable

Availability:

In stock


  • 5 Port Compact Ethernet Switch
  • Integrated DIN Rail Mount with grounding
  • Redundant dual power inputs: +5V to +30V DC
  • Industrial operating temp range -40°C to +80°C / -40°F to +176°F
  • Small Footprint Case, only 22.5mm wide, 94mm deep
  • Lifetime Warranty and Support

£55.55 (£46.29 ex VAT)

In stock

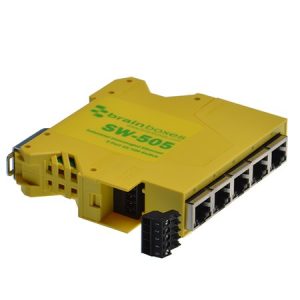

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

SW-505-datasheet (1.36 MB)

SKU: SW-505 Categories: ,

Technical Specification

Ethernet
Ethernet Ports 5
Ethernet Speed 10/100 Fast Ethernet
PoE No
Power
Power Input 5V – 30V DC Redundant DC Dual Power Inputs, reverse polarity protected
General
Operating Temperature Range -40 °C to +80 °C / -40 °F to +176 °F
Storage Temperature -40 °C to +85 °C / -40 °F to +185 °F
Form Factor Din rail mounted
Power Consumption 1.35 Watts Max : 260 mAmps@+5VDC/45mAmps@+30VDC
Product Weight 0.115 kg, 4.06 ounces
Product Dimensions 99x94x23 mm, 3.9×3.7×0.9 inches
Packaged Weight 0.199 kg, 7.02 ounces
Packaged Dimensions 160x135x49 mm, 6.3×5.3×1.9 inches
