Teltonika TSW100
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
£56.00 (£67.20 incl. VAT)
-
Industrial Switches, Teltonika
Teltonika TSW100
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
SKU: TSW100
TSW100 is the first industrial unmanaged switch from Teltonika Networks.
Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power.
It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.
What’s in the box?
• 62 W PSU
• TSW100
• QSG (Quick Start Guide)
• Packaging box
-
ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
-
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
-
PoE ports
Port 1- 4
-
PoE standards
802.3af and 802.3at
-
PoE Max Power per Port (at PSE)
30 W
-
PoE Power Budget (at PSE)
120 W
-
Bandwidth (Non-blocking)
10 Gbps
-
Packer buffer
128 KB
-
MAC address table size
2K entries
-
Connector
4-pin industrial DC power socket
-
Input voltage range
7 – 57 VDC
-
PoE-out input voltage range
44 – 57 VDC
-
Power consumption
Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W
-
Ethernet

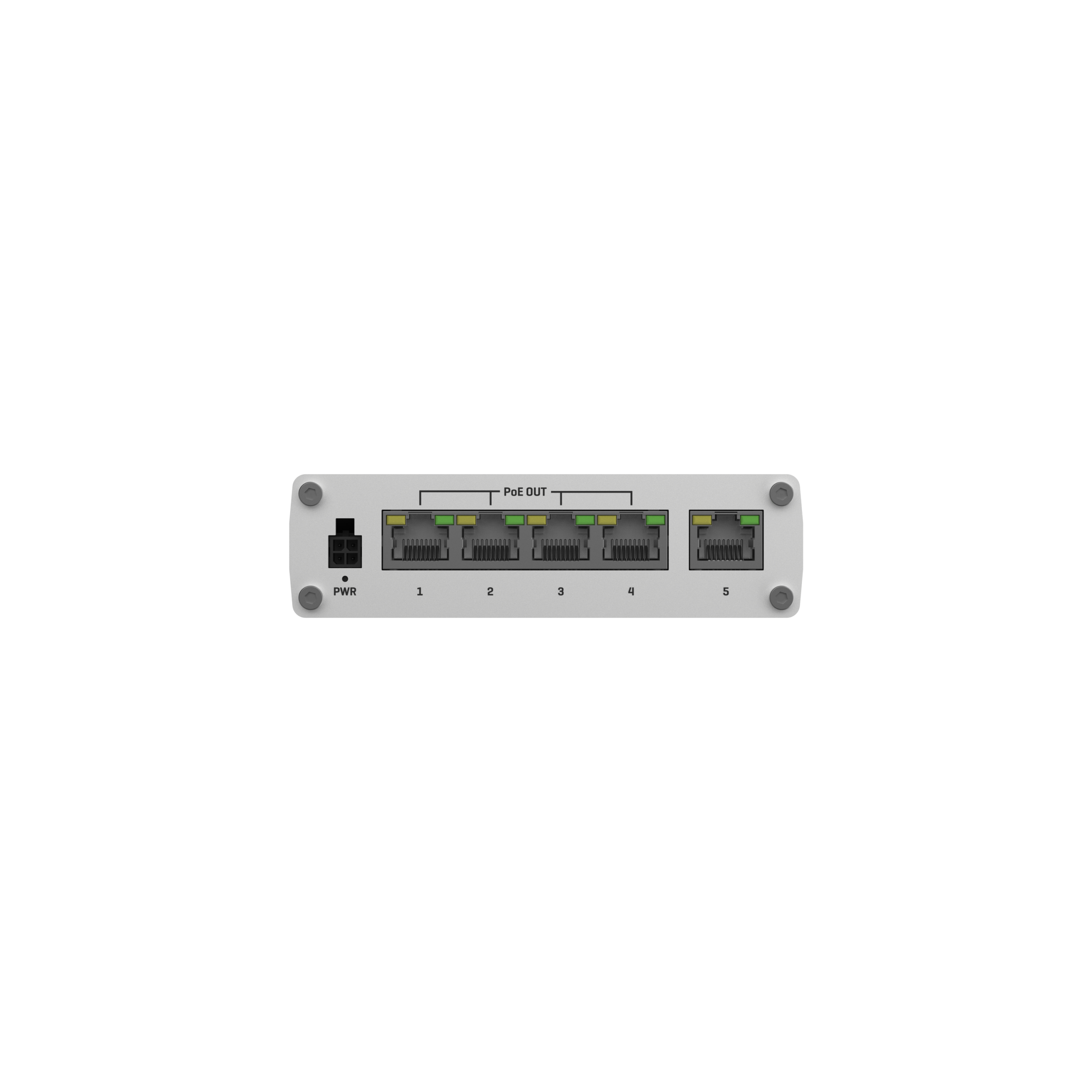

5 x RJ45 ports, 10/100/1000 Mbps
-
Status LEDs
1 x Power LED, 10 x ETH status LEDs
-
Power
1 x 4-pin power connector
-
Other

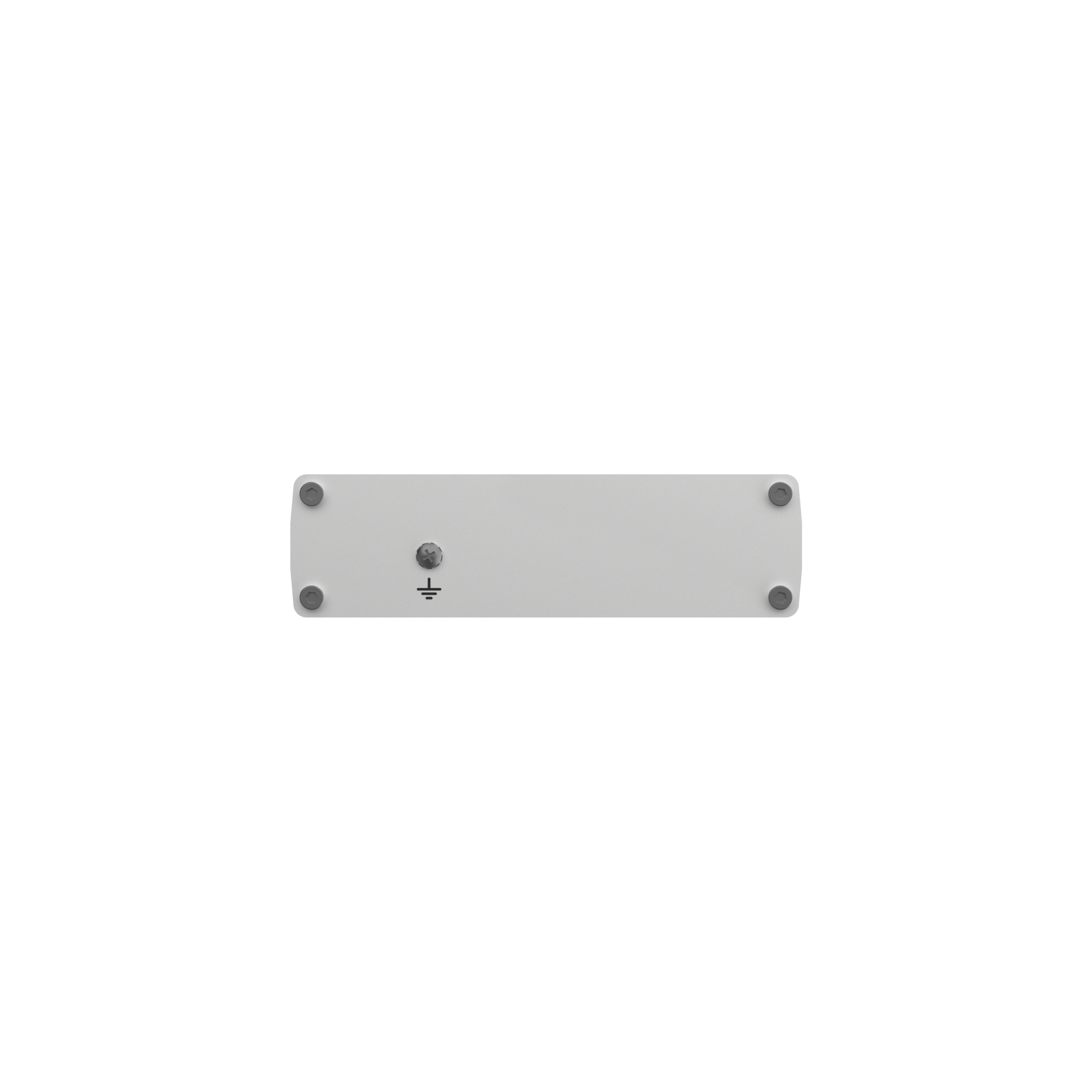

1 x Grounding screw
-
Casing material
Full aluminum housing
-
Dimensions (W x H x D)
115 x 32 x 95 mm
-
Weight
350 g
-
Mounting options
DIN rail or wall mounting (additional kit needed), flat surface placement
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
10% to 90% non-condensing
-
Ingress Protection Rating
IP30
