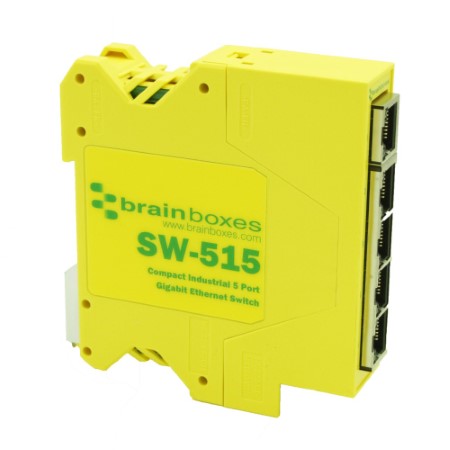

SW-515 Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable

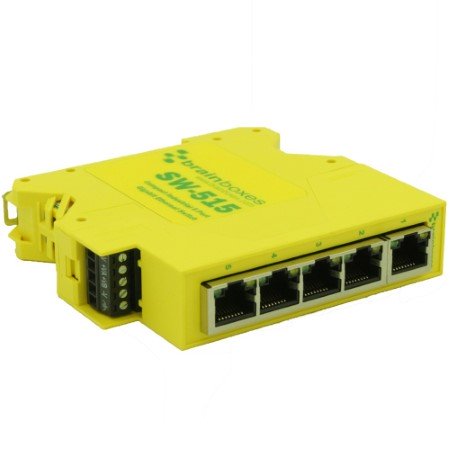

SW-515 Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable - Image 2

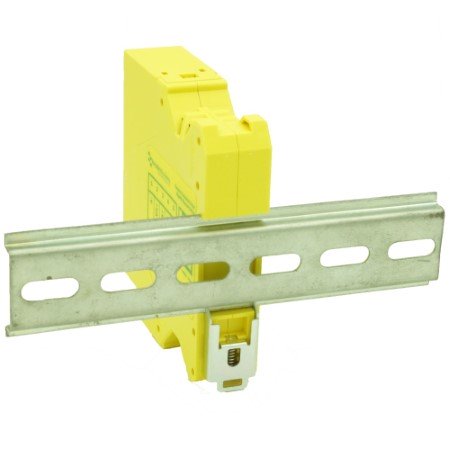

SW-515 Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable - Image 3

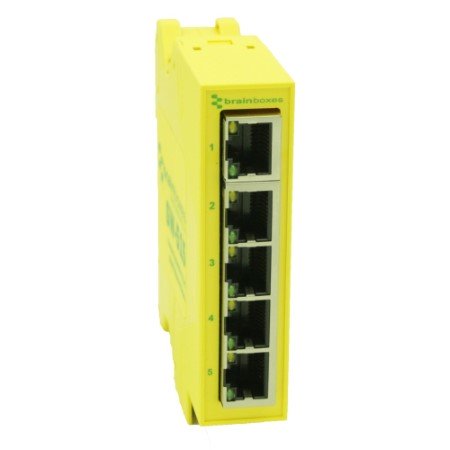

SW-515 Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable - Image 4
SW-515 Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable
,

SW-515 Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable

  • 5 Gigabit Ethernet ports
  • Wide voltage input range: +5V to +30V DC – can be powered by a variety of sources
  • Industrial operating temperature range: -40ยบC to +80ยบC/-40ยบF to +176ยบF – works in extreme conditions
  • Redundant dual power inputs – reduces risk of power outage
  • Small Footprint Case, only 23mm wide, 94mm deep

£92.86 (£111.43 incl. VAT)

Get Trade Price
Add to Quote
Compare

Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

SW-515-datasheet

SKU: SW-515 Categories: , Brand:

Tech Spec

Ethernet
Ethernet Ports 5
Ethernet Speed 10/100/1000 Gigabit Ethernet
PoE No
Power
Power Input 5V – 30V DC Redundant DC Dual Power Inputs, reverse polarity protected
General
Operating Temperature Range -40 °C to +80 °C / -40 °F to +176 °F
Storage Temperature -40 °C to +85 °C / -40 °F to +185 °F
Form Factor Din rail mounted
Power Consumption 3.6W Max: 720mA@+5VDC/120mA@+30VDC
Product Weight 0.112 kg, 3.95 ounces
Product Dimensions 99x94x23 mm, 3.9×3.7×0.9 inches
Packaged Weight 0.191 kg, 6.74 ounces
Packaged Dimensions 160x135x49 mm, 6.3×5.3×1.9 inches
GTIN (barcode) 837324004281
Interface
Ethernet Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world.
