QuMax for Teltonika RUT240/230

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT240 or RUT230 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It also has embedded outdoor Wi-Fi omni antennas.

£101.37 (£121.64 incl. VAT)

Get Trade Price
Add to Quote
Compare
£101.37 (£121.64 incl. VAT) for 1 item(s)

EAN: 5907772035085 SKU: A240M Categories: , Brand:
LTE ANTENNA SPECIFICATION
Frequency 0.694 – 0.96 GHz
1.7 – 2.2 GHz
2.2 – 2.7 GHz

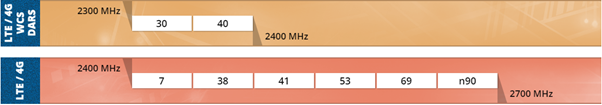

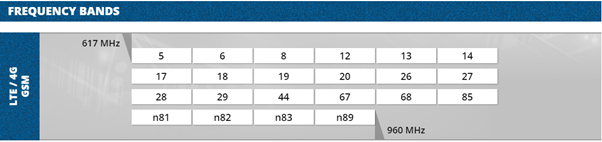

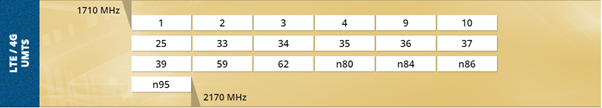

Supported LTE/5G bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

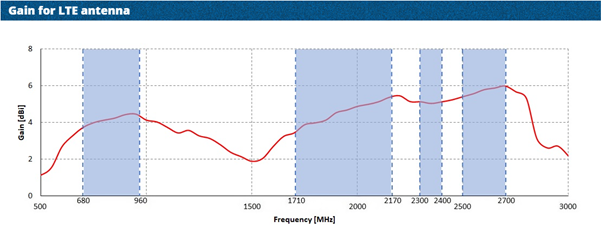

Gain 0.694 – 0.96 GHz : 4 dBi
1.7 – 2.2 GHz : 5 dBi
2.2 – 2.7 GHz : 6 dBi
Front-to-Back >8 dB

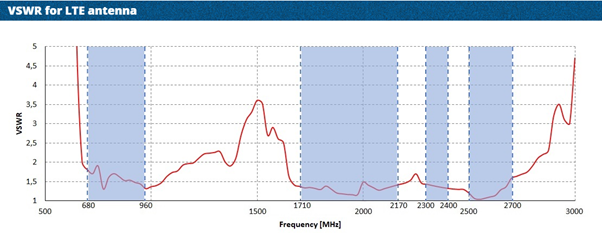

VSWR <1.30, max <1.80

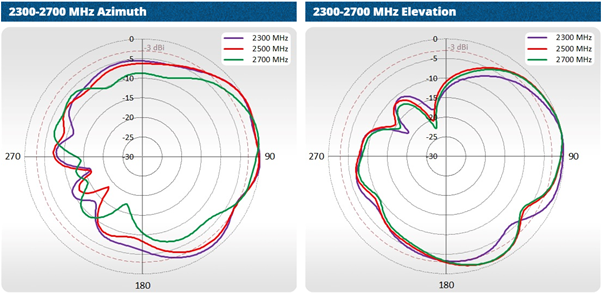

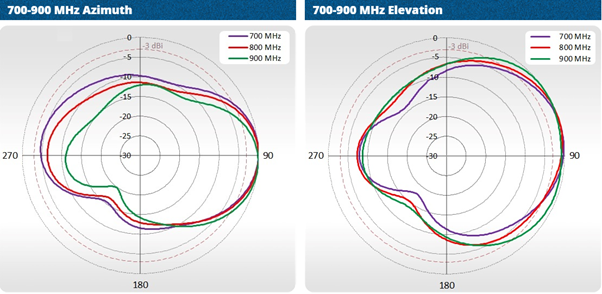

Beamwidth 90°/90° ±30°
Polarization Vertical
Impedance 50 Ω



WI-FI ANTENNA SPECIFICATION
Frequency 2.40 – 2.50 GHz

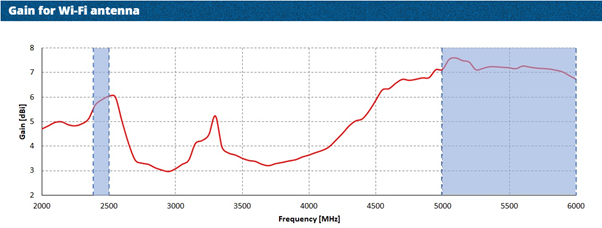

Gain 6 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω



MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Connector type RJ45 + Nf + Nm in external omni wi-fi antenna
Ingress protection IP67
Dimensions 272 x 276 x 96 mm
10.71 x 10.87 x 3.78 inch
Weight 1.8 kg
3.97 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
