QuOmni LTE SISO


QuOmni LTE omnidirectional SISO LTE antenna is working in Vertical polarization, it´s desired for LTE/3G/2G connections. The antenna can be used for the most popular LTE bands (e.g. 3,7,20), frequencies 694-2700 MHz. That antenna is predicted to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by LTE/3G. It’s compatible with Teltonika: RUT230, TRB140, TRB141, TRB142, TRB145, TRM240, TRM250 and other SISO LTE/3G/2G modems and routers.

£66.57£69.53

Clear
£281.67 (£338.00 incl. VAT) for 3 item(s)

SKU: AOLS1 Categories: ,
LTE ANTENNA SPECIFICATION
Frequency0.694 – 0.96 GHz
1.7 – 2.2 GHz
2.2 – 2.7 GHz

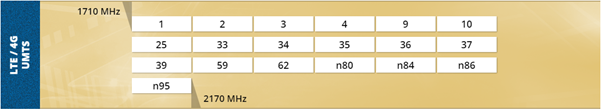

Supported LTE/5G bands1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

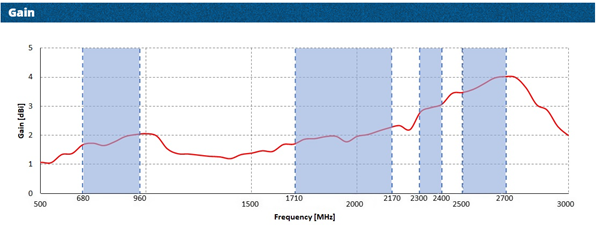

Gain0.694 – 0.96 GHz : 2 dBi
1.7 – 2.2 GHz : 2 dBi
2.2 – 2.7 GHz : 4 dBi
VSWR<1.60, max <2.00

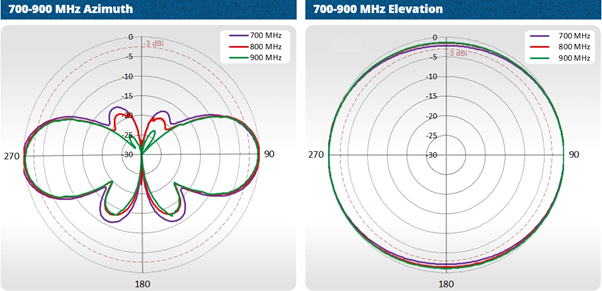

Beamwidth360°/35° ±5°
PolarizationVertical
Impedance50 Ω



MECHANICAL SPECIFICATION
MaterialsABS, aluminum, PTFE
Ingress protectionIP67
Dimensions160 x 160 x 240 mm
6.3 x 6.3 x 9.45 inch
Weight1.5 kg
3.31 lbs
Operating temperatureFrom -40°C to 75°C
From -40°F to 167°F
Cable length5m (P/N: AOLS1) or 10m (P/N: AOLS1-1)
Cable typeLMR195 white
Connector type1x SMA plug
