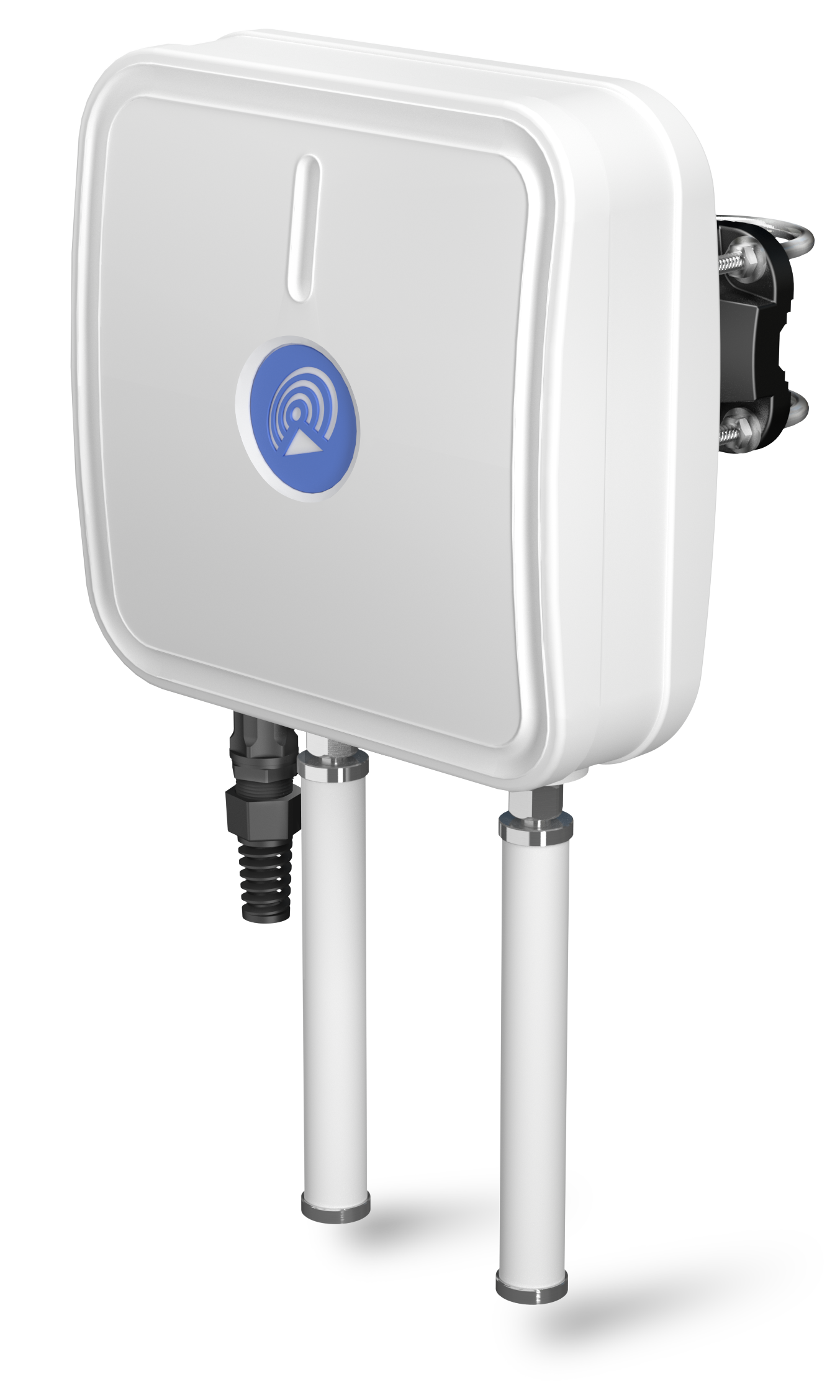

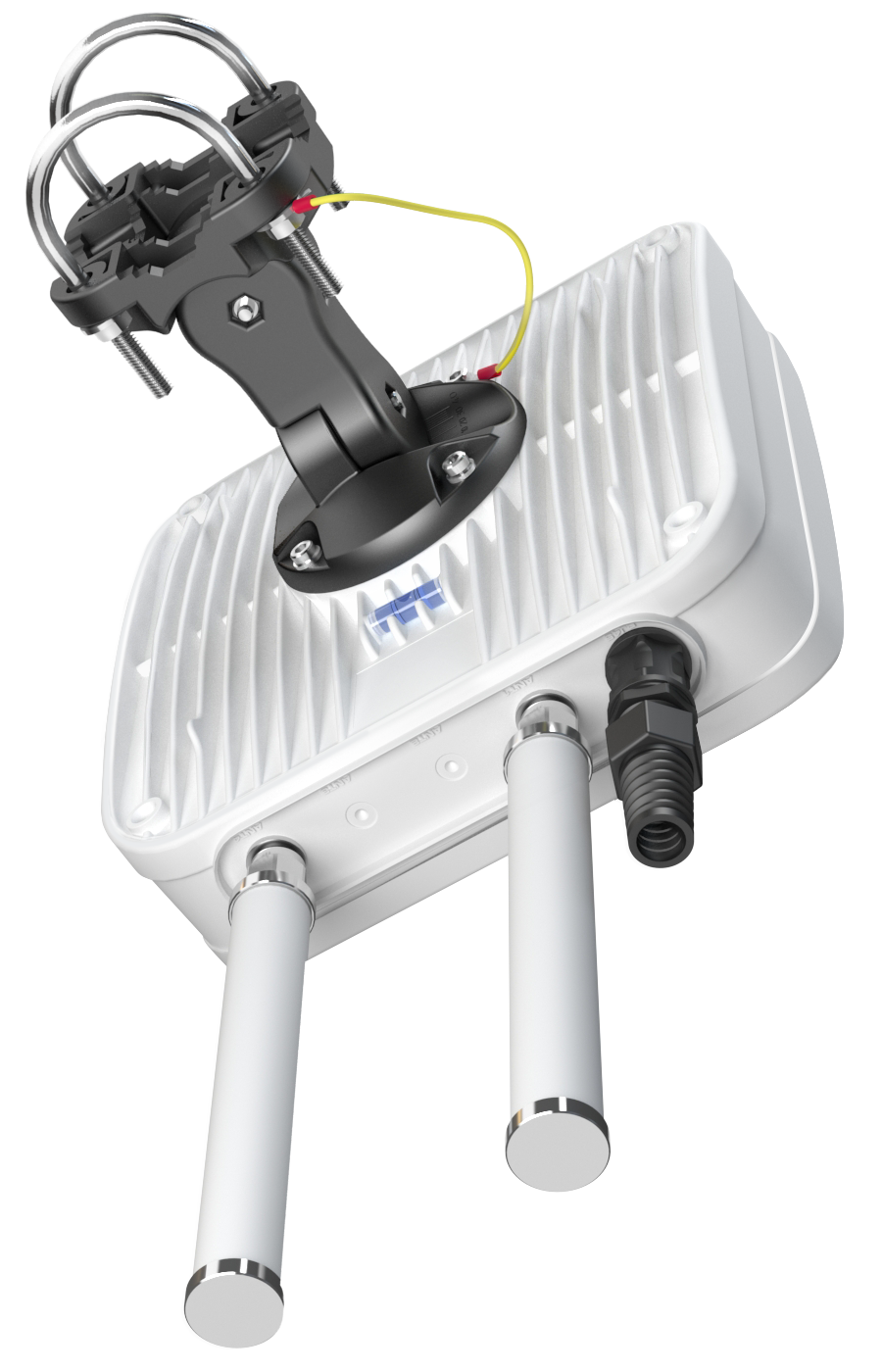

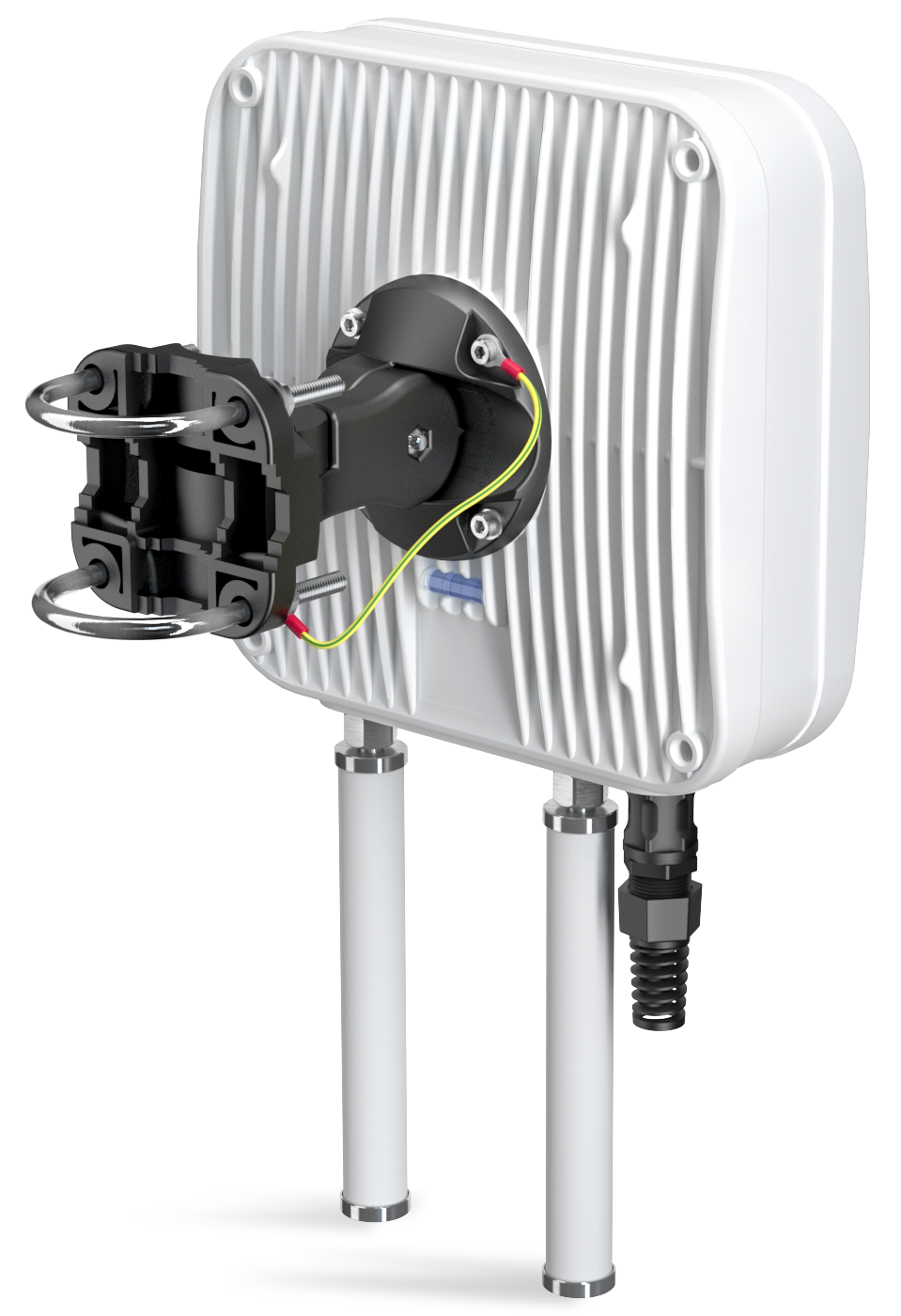

QuMax for Teltonika RUTX11
Integrated outdoor LTE directional antenna + outdoor Wi-Fi dual band 2.4 & 5 GHz omni antenna + Bluetooth antenna + GPS antenna + place to install Teltonika RUTX11
£127.78 (£153.34 incl. VAT)
-
4G LTE Routers, Teltonika
Teltonika RUTX11
This powerful LTE Cat 6 cellular industrial router is designed for professional applications requiring reliable, fast connection and high data throughput. It is equipped with four Gigabit Ethernet ports, AC Wi-Fi, Bluetooth LE, and comes with remote management capabilities of RMS.
SKU: RUTX11
Teltonika RUTX11 External Antenna
Description:

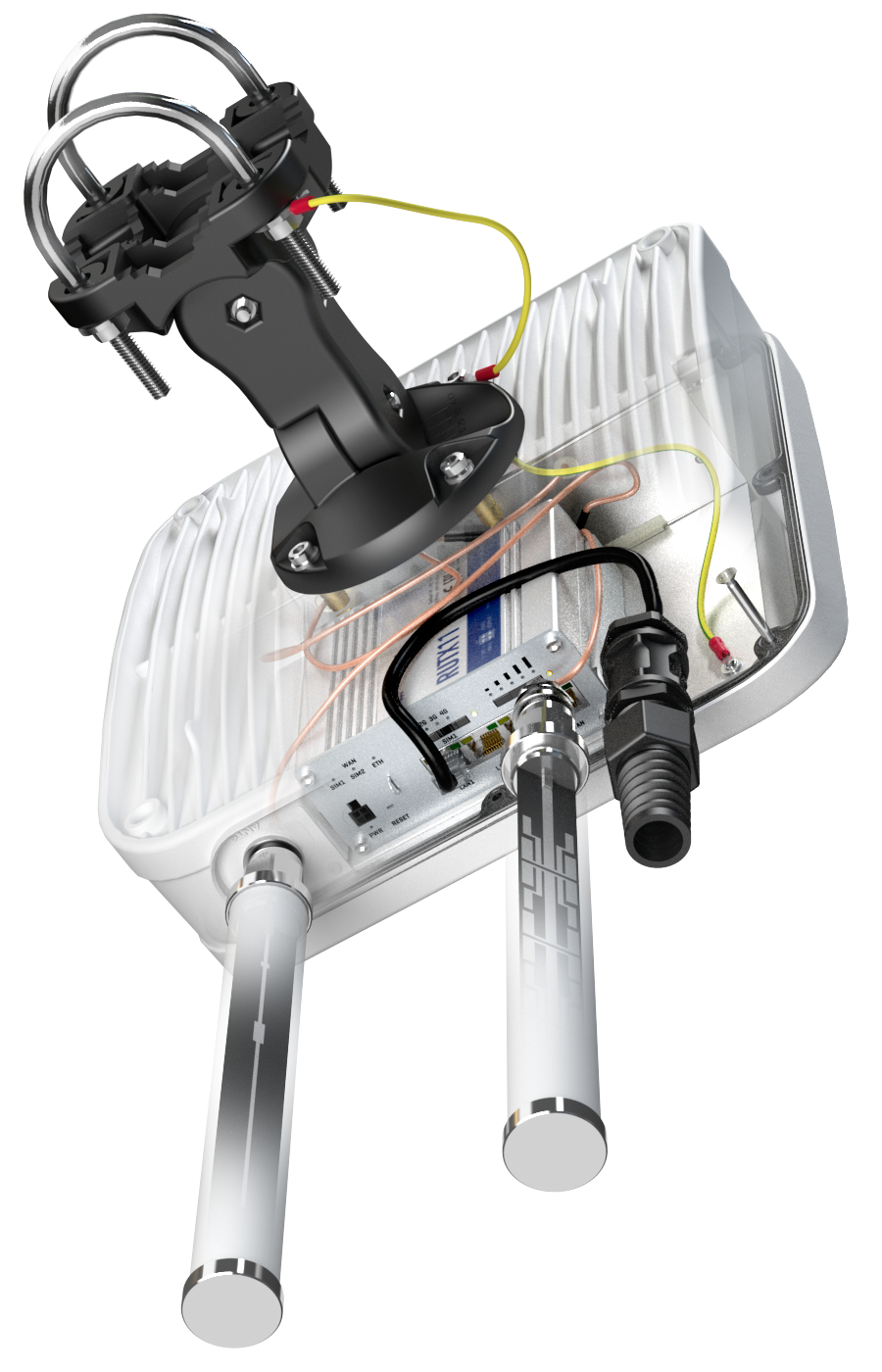

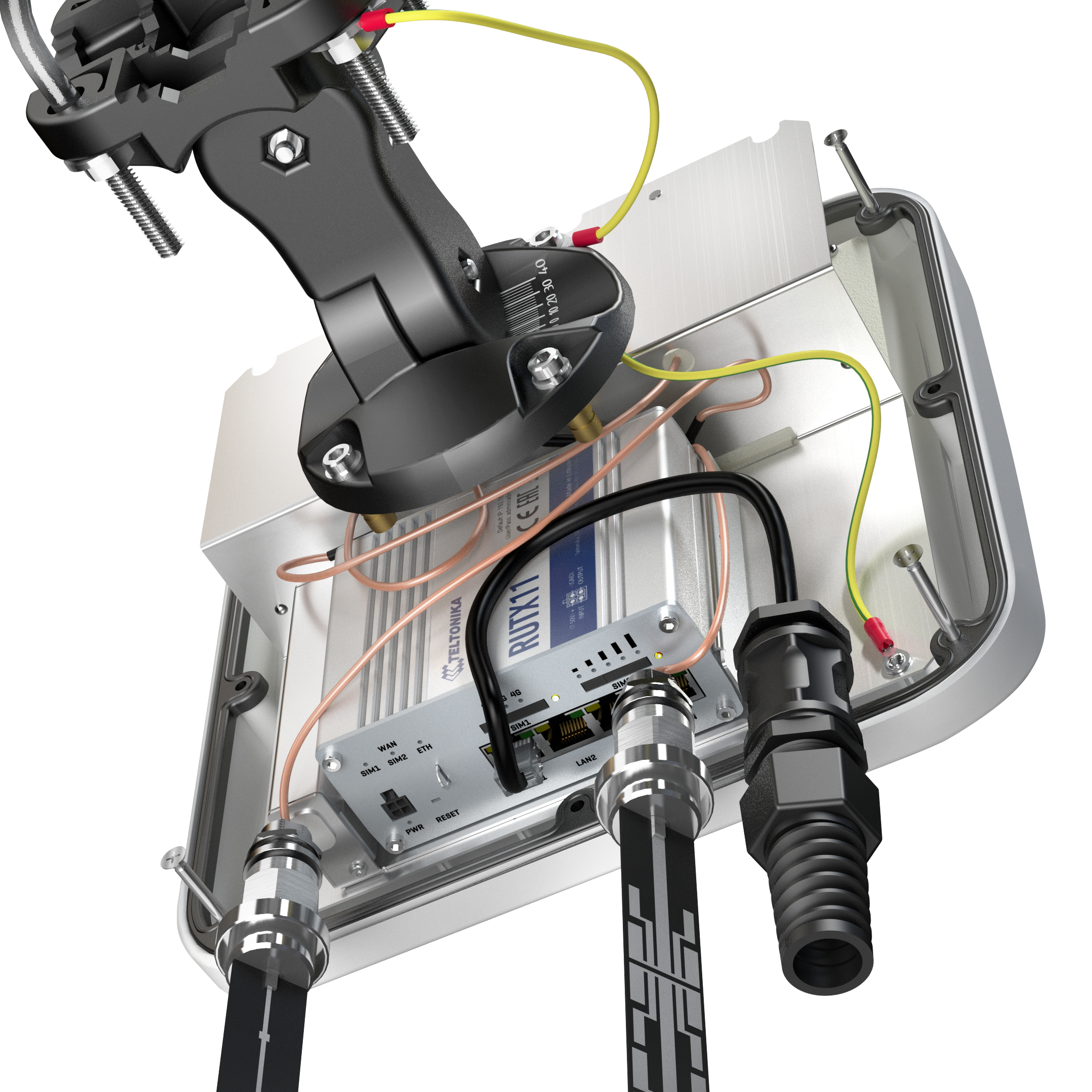

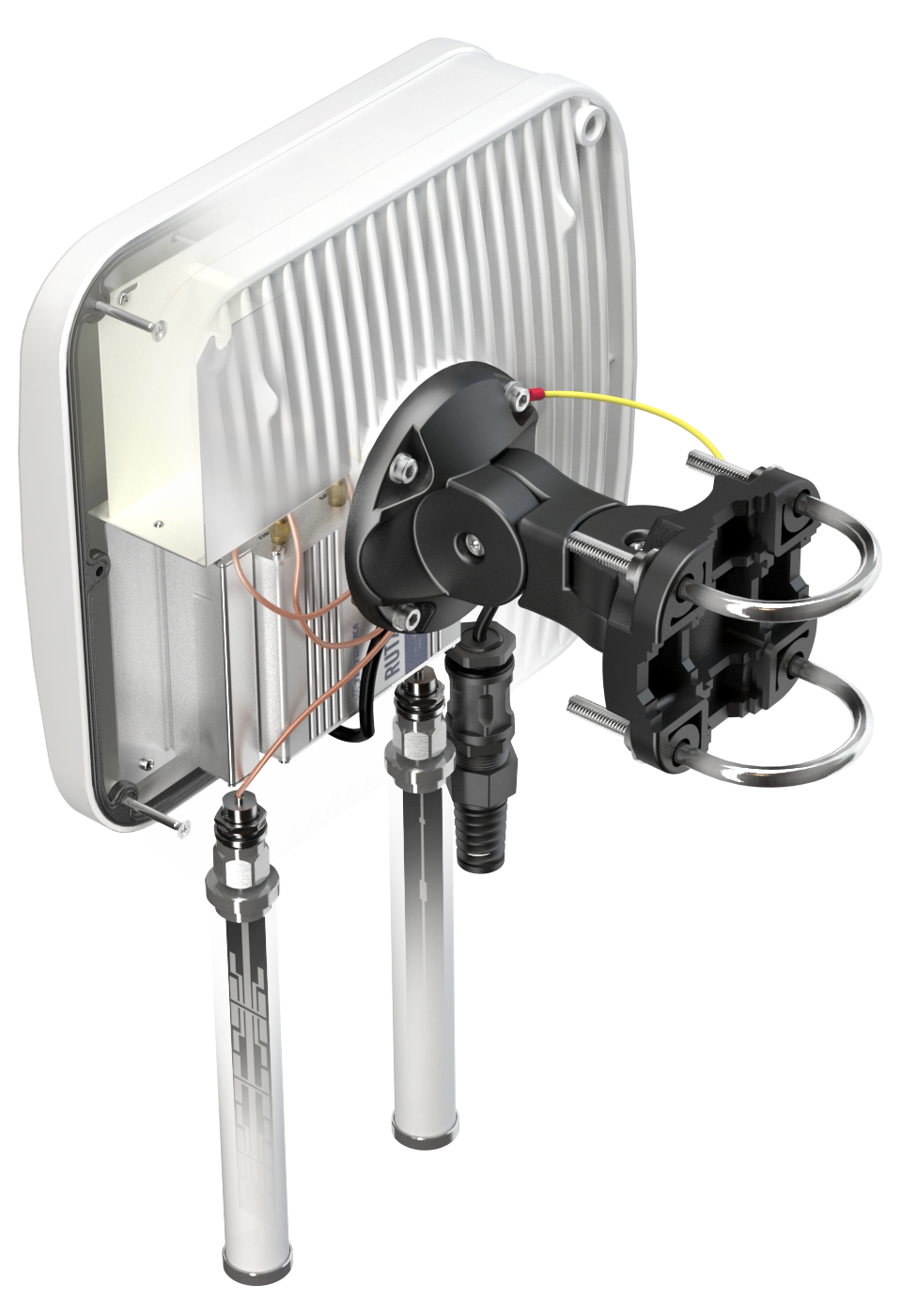

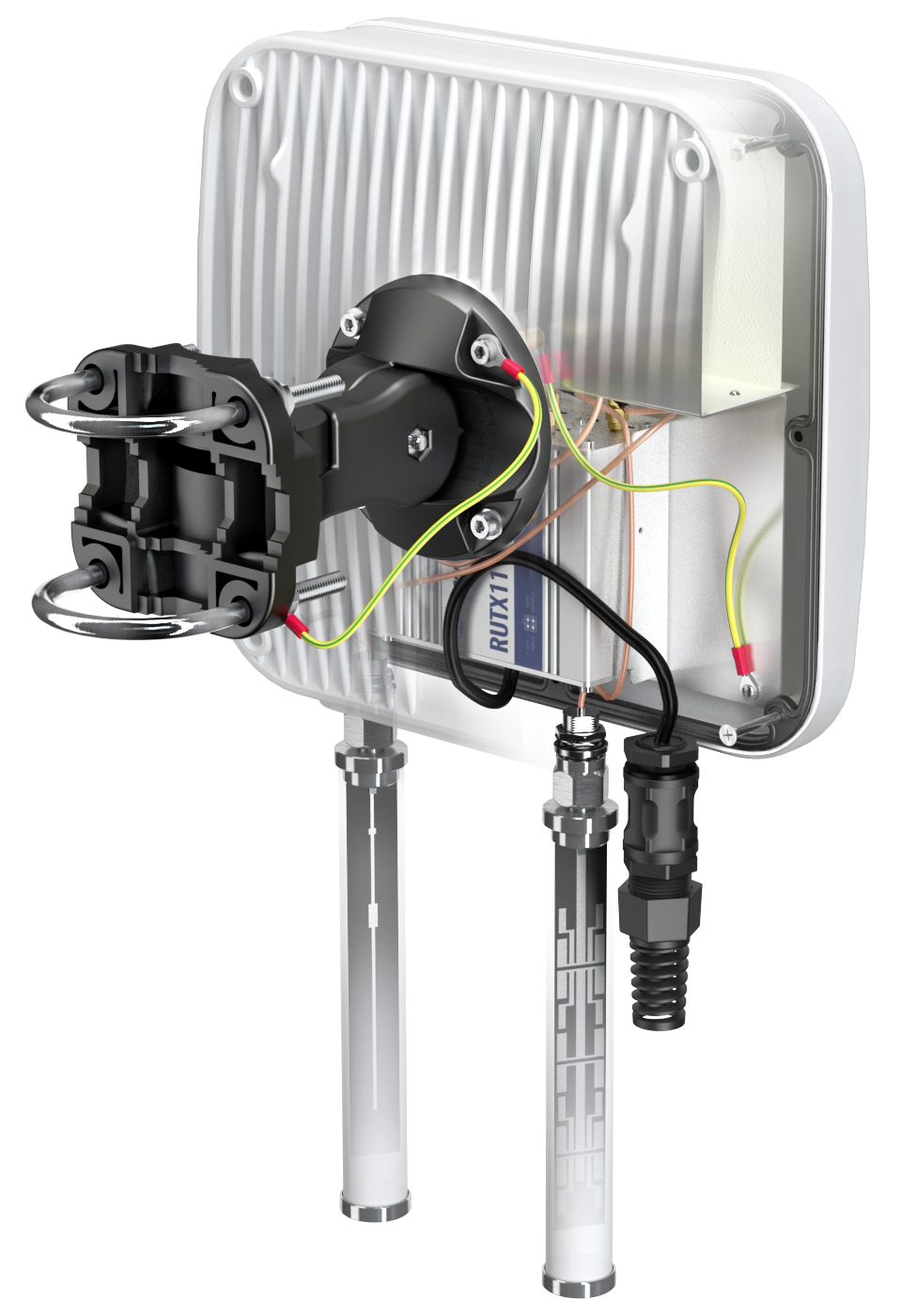

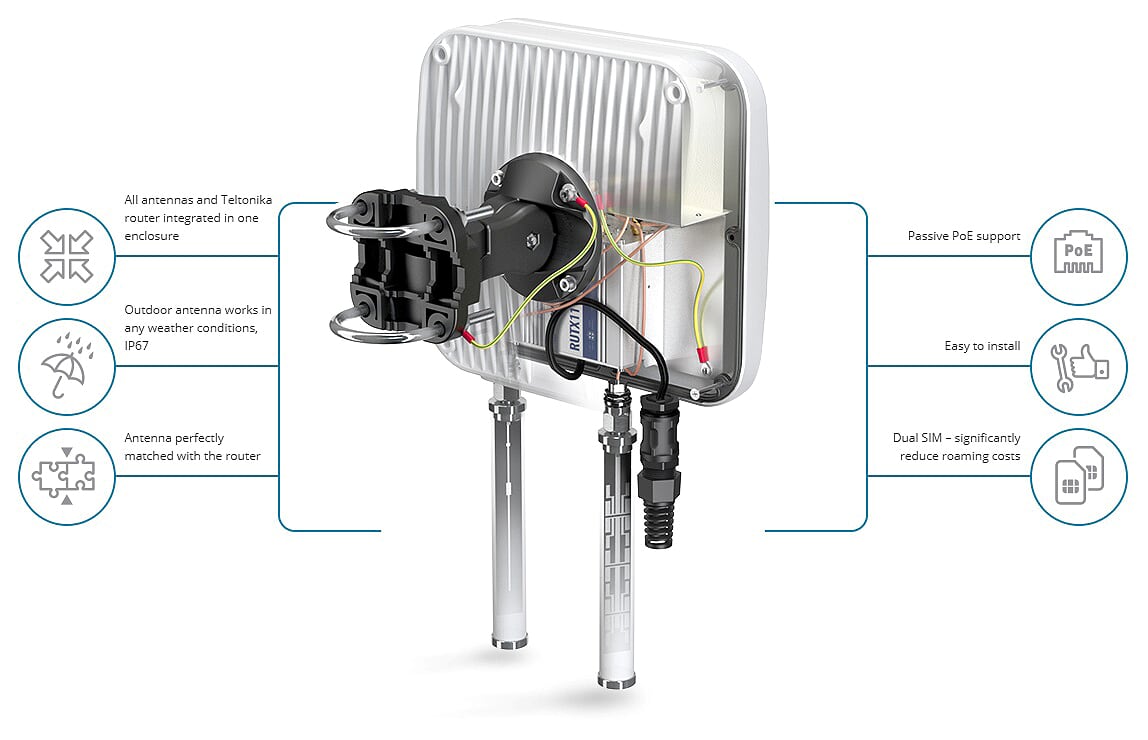

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It also has embedded GPS antenna, Bluetooth antenna and outdoor Wi-Fi dual band 2.4 & 5 GHz omni antennas.
Downloads:
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.694 – 0.96 GHz 1.7 – 2.2 GHz 2.2 – 2.7 GHz |
| Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85 |
| Gain | 0.694 – 0.96 GHz : 4 dBi 1.7 – 2.2 GHz : 5 dBi 2.2 – 2.7 GHz : 6 dBi |
| VSWR | <1.30, max <1.80 |
| Beamwidth | 90°/90° ±30° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| WI-FI ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 2.40 – 2.50 GHz 4.70 – 6.00 GHz |
| Gain | 2.40 – 2.50 GHz : 6 dBi 4.70 – 6.00 GHz : 7 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| BLUETOOTH ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 2.30 – 2.60 GHz |
| Gain | 3 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Ingress protection | IP67 |

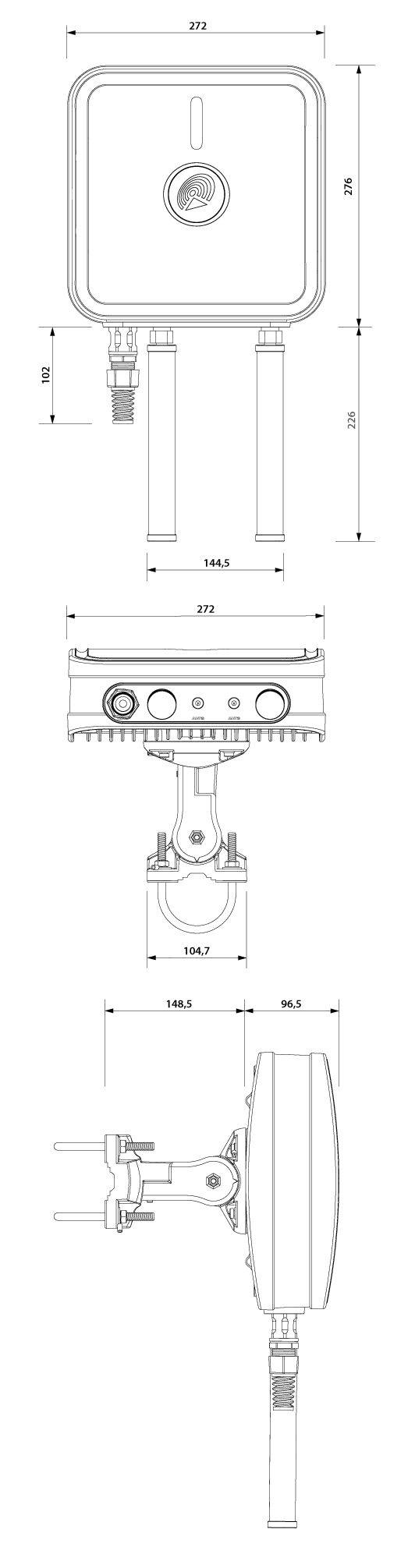

| Dimensions | 272 x 276 x 96 mm 10.71 x 10.87 x 3.78 inch |
| Weight | 1.8 kg 3.97 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
| DEVICE SPECIFICATION (NOT INCLUDED) | |
|---|---|
 Most powerful and feature rich device within Teltonika Networking products range. Equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. RUTX11 comes with all RutOS software and security features. This device is perfect for advanced Industrial and Enterprise applications. |
|
