QuSpot for Teltonika RUT950/900

QuSpot omni LTE antenna for Teltonika RUT950 or 900 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi antennas. If you use RUT950 or 900 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

£100.98 (£121.18 incl. VAT)

Get Trade Price
Add to Quote
Compare
£100.98 (£121.18 incl. VAT) for 1 item(s)











EAN: 5907772035023 SKU: A950S Categories: , Brand:
LTE ANTENNA SPECIFICATION
Frequency 0.694 – 0.96 GHz
1.7 – 2.2 GHz
2.2 – 2.7 GHz

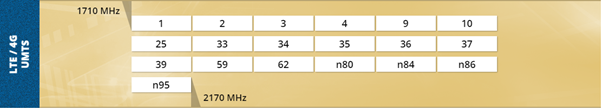

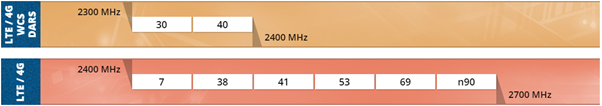

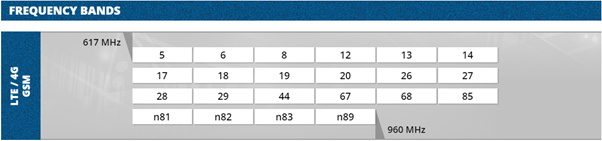

Supported LTE/5G bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

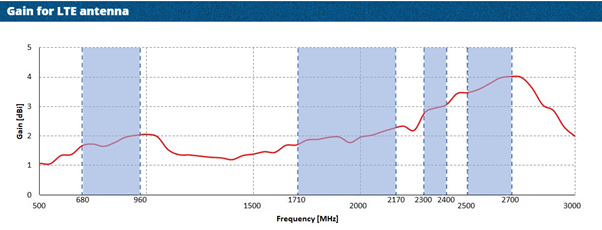

Gain 0.694 – 0.96 GHz : 2 dBi
1.7 – 2.2 GHz : 2 dBi
2.2 – 2.7 GHz : 4 dBi

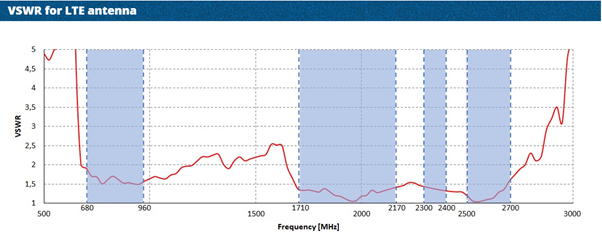

VSWR <1.60, max <2.00

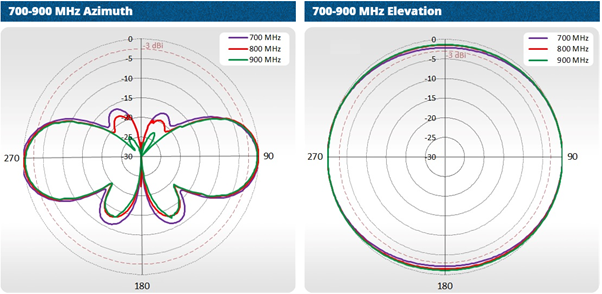

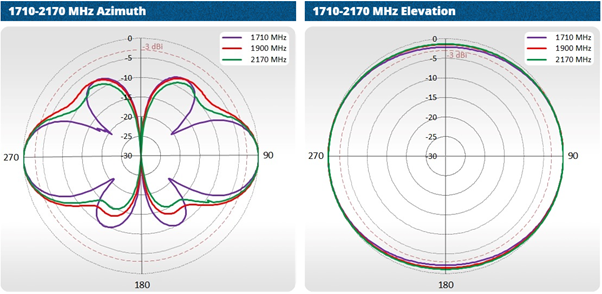

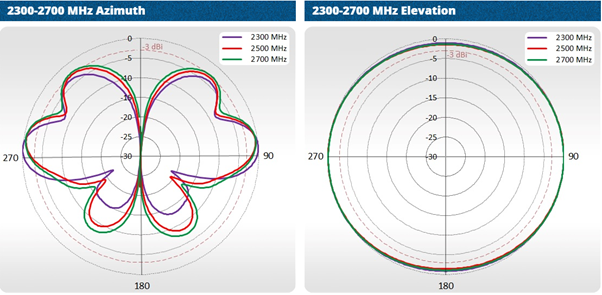

Beamwidth 360°/35° ±5°
Polarization Vertical
Impedance 50 Ω

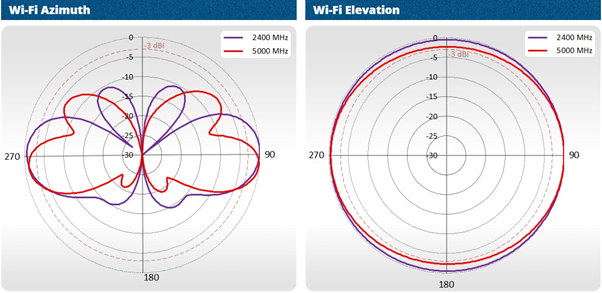

WI-FI ANTENNA SPECIFICATION
Frequency 2.40 – 2.50 GHz

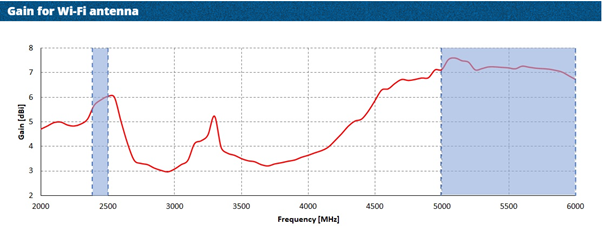

Gain 6 dBi

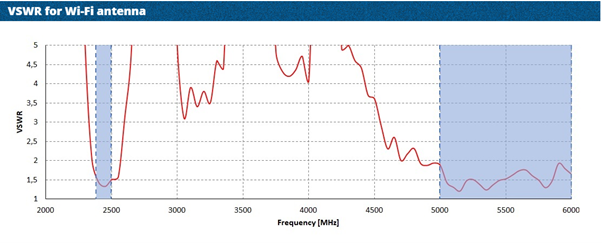

VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω



MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE
Connector type RJ45
Ingress protection IP67
Dimensions 160 x 160 x 240 mm
6.3 x 6.3 x 9.45 inch
Weight 1.5 kg
3.31 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
