QuPanel LTE HP SISO

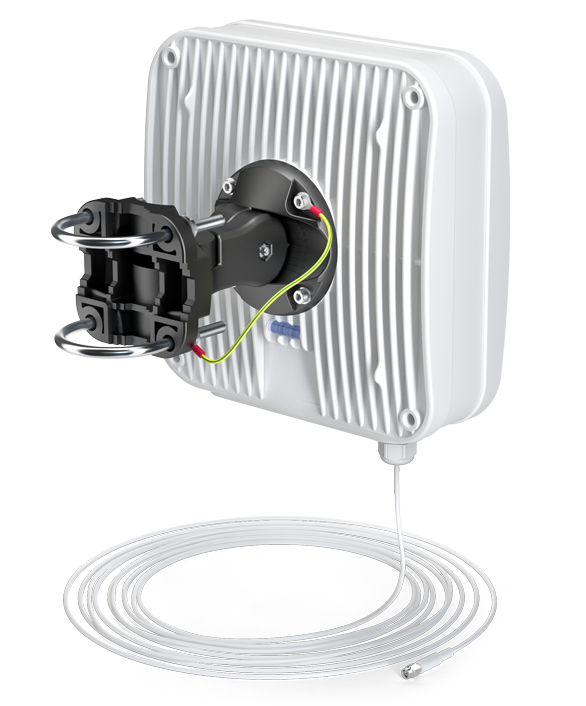

QuPanel LTE HP SISO Directional High Power Multiband Antenna
Gain: 7 dBi
Frequency: 0.694 – 0.96 GHz, 1.7 – 2.2 GHz, 2.2 – 2.7 GHz

£90.12 (£75.10 ex VAT)

£270.12 (£225.10 ex VAT) for 3 item(s)

Description:

QuPanel LTE HP directional high gain antenna is predicted for 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for LTE bands like LTE700/800/1800/1900/2100/2300/2600. It’s compatible with Teltonika: RUT230, TRB140, TRB141, TRB142, TRB145, TRM240, TRM250 and other SISO LTE/3G/2G modems and routers.

Cable length: 5m





Downloads:

Datasheet-QuPanel-LTE-HP-SISO



SKU: APLS1-H Categories: ,
LTE ANTENNA SPECIFICATION
Frequency 0.694 – 0.96 GHz
1.7 – 2.2 GHz
2.2 – 2.7 GHz
Supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85
Gain 0.694 – 0.96 GHz : 7 dBi
1.7 – 2.2 GHz : 7 dBi
2.2 – 2.7 GHz : 7 dBi
VSWR <1.70, max <2.00
Beamwidth 70°/70° ±15°
Polarization ±45°
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Ingress protection IP67

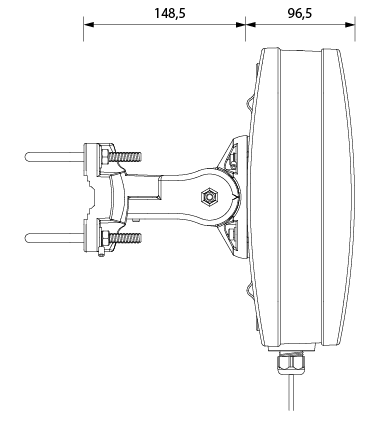

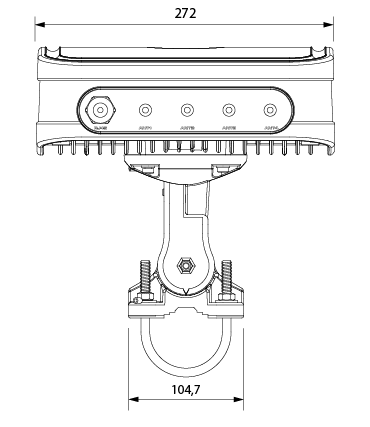

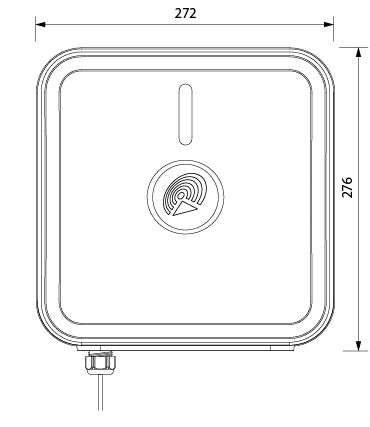

Dimensions 272 x 276 x 96 mm
10.71 x 10.87 x 3.78 inch
Weight 1.8 kg
3.97 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F

VSWR
700-900 MHz Azimuth
700-900 MHz Elevation
1710-2170 MHz Azimuth
1710-2170 MHz Elevation
2300-2700 MHz Azimuth
2300-2700 MHz Elevation
