QuSpot for Teltonika RUT240/230
Integrated multi-band LTE omni antenna + WiFi omni antenna + place to install Teltonika RUT240 or 230
£87.65 (£105.18 incl. VAT)
-
4G & 5G Networking, 4G Industrial Routers, 4G LTE Modems, 4G LTE Routers, Routers, Teltonika
Teltonika RUT241
4G & 5G Networking, 4G Industrial Routers, 4G LTE Modems, 4G LTE Routers, Routers, TeltonikaTeltonika RUT241
Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, RUT241 offers unstoppable connection continuity with automatic WAN failover. Industrial design, compact size, multiple connection interfaces, and compatibility with RMS make this device an excellent fit in numerous IoT and M2M solutions.
SKU: RUT241
Description:

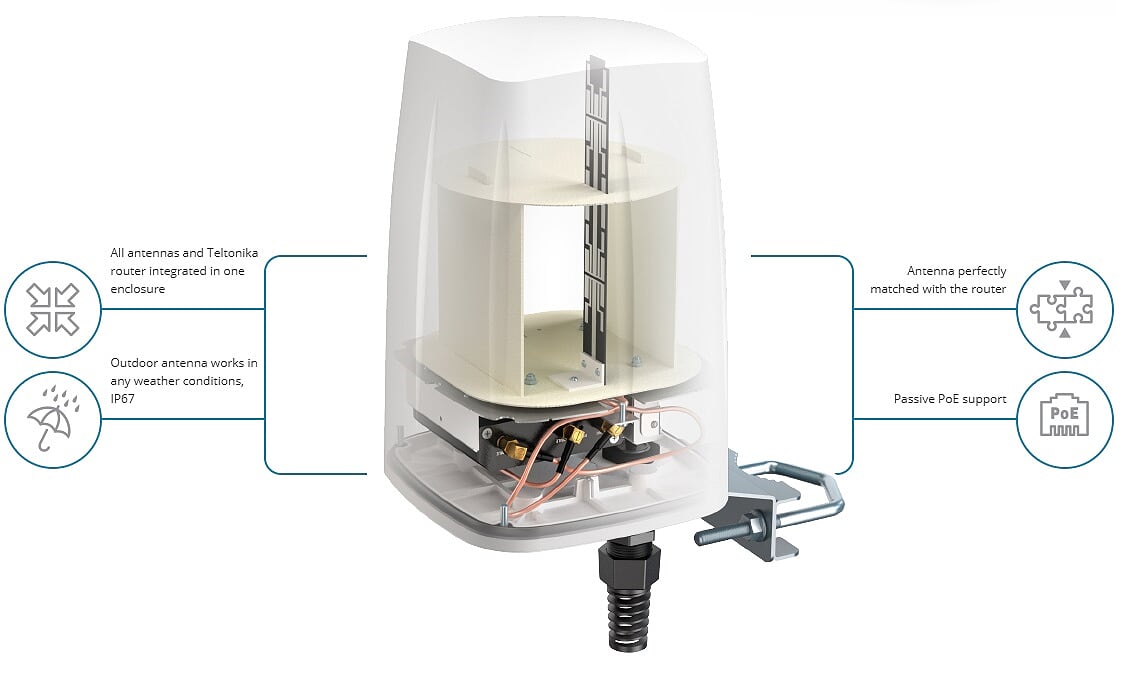

QuSpot omni LTE antenna for Teltonika RUT240 of 230 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi antenna. If you use RUT240 or 230 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Downloads:
Datasheet-QuSpot-for-RUT230-RUT240-v1.0
| LTE ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.694 – 0.96 GHz 1.7 – 2.2 GHz 2.2 – 2.7 GHz |
| Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85 |
| Gain | 0.694 – 0.96 GHz : 2 dBi 1.7 – 2.2 GHz : 2 dBi 2.2 – 2.7 GHz : 4 dBi |
| VSWR | <1.60, max <2.00 |
| Beamwidth | 360°/35° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| WI-FI ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 2.40 – 2.50 GHz |
| Gain | 6 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE |
| Ingress protection | IP67 |

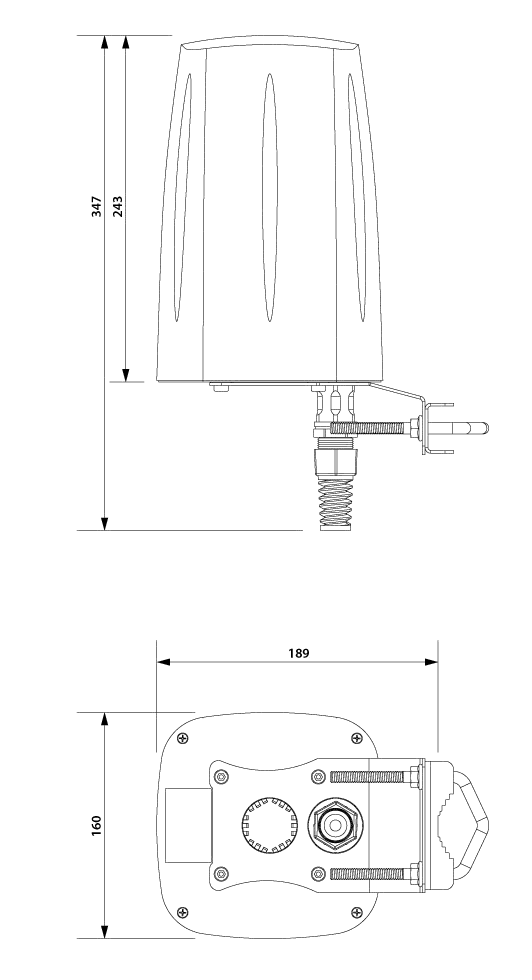

| Dimensions | 160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch |
| Weight | 1.5 kg 3.31 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
